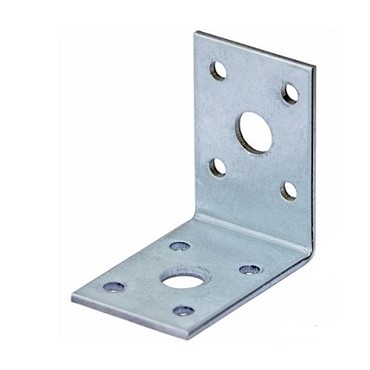

Beam Angle Connector
| A | B | C | D | E | F | Th | H,D | Surface Finish | Raw Material | Art- No. |
|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 50 | 35 | 2.5 | 8X4.0; 2X10.0 | White Zinc Plating | Mild Steel | PI06-51-31-0601 | |||
| 50 | 50 | 35 | 2.5 | 8X4.0; 2X10.0 | White Powder Coating | Mild Steel | PI06-51-35-0601 | |||
| 50 | 150 | 35 | 2.5 | 16X4.5; 4X11.0 | White Zinc Plating | Mild Steel | PI06-51-31-0607 | |||
| 60 | 40 | 60 | 2.5 | 13X4.5; 3X11.0 | White Zinc Plating | Mild Steel | PI06-51-31-0602 | |||
| 70 | 70 | 55 | 2.5 | 14X4.5; 2X10.0 | White Zinc Plating | Mild Steel | PI06-51-31-0606 | |||
| 90 | 90 | 40 | 2.0 | 16X4.5; 4X10.0 | Self Color | Stainless Steel | PI06-52-30-0604 | |||
| 90 | 90 | 40 | 2.5 | 16X4.5; 4X10.0 | White Zinc Plating | Mild Steel | PI06-51-31-0603 | |||
| 100 | 100 | 35 | 2.5 | 16X5.0; 4X11.0 | White Zinc Plating | Mild Steel | PI06-51-31-0608 | |||
| 100 | 100 | 90 | 3.0 | 32X4.1; 12X7.0; 2X13.0 | White Zinc Plating | Mild Steel | PI06-51-31-0605 |
A, B, C, D, E, F = Dimension
Th = Thickness
